Features
- It is excellent in accuracy and durability because a high precision stepping motor is adopted.
- It operates stably even when subject to load changes because it is excellent in the reproducibility and stability of rotation per minute.
- Self-suck type requiring no priming water.
Spec

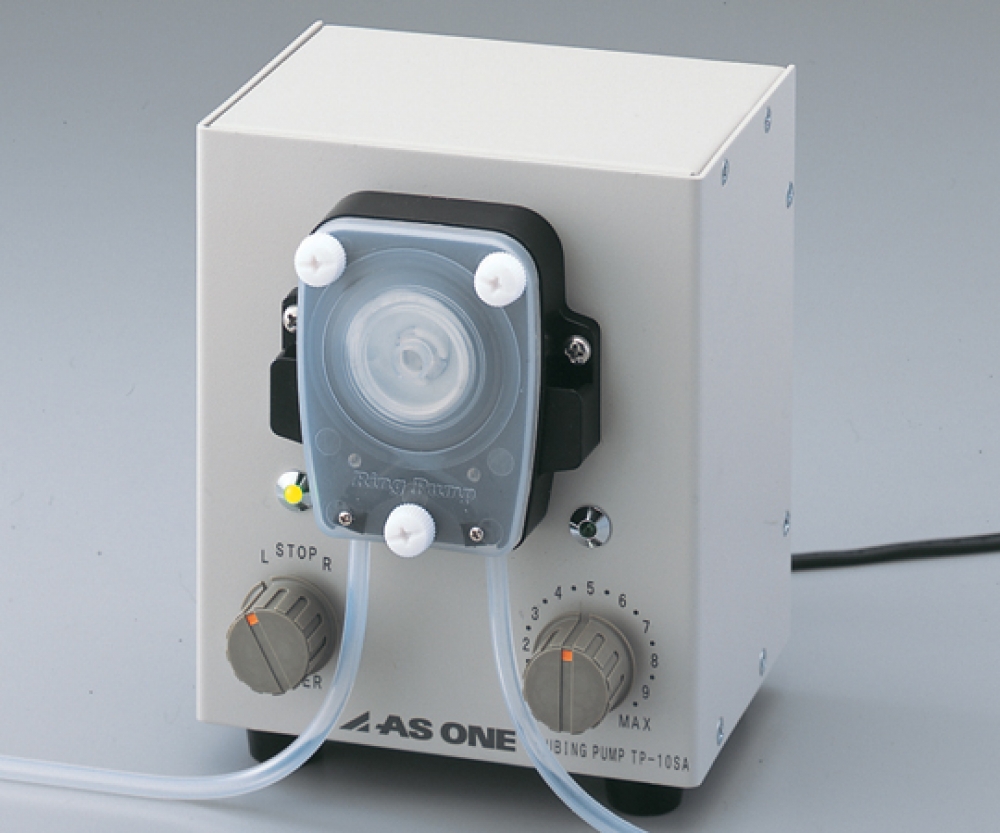

- Model number: TP-10SA

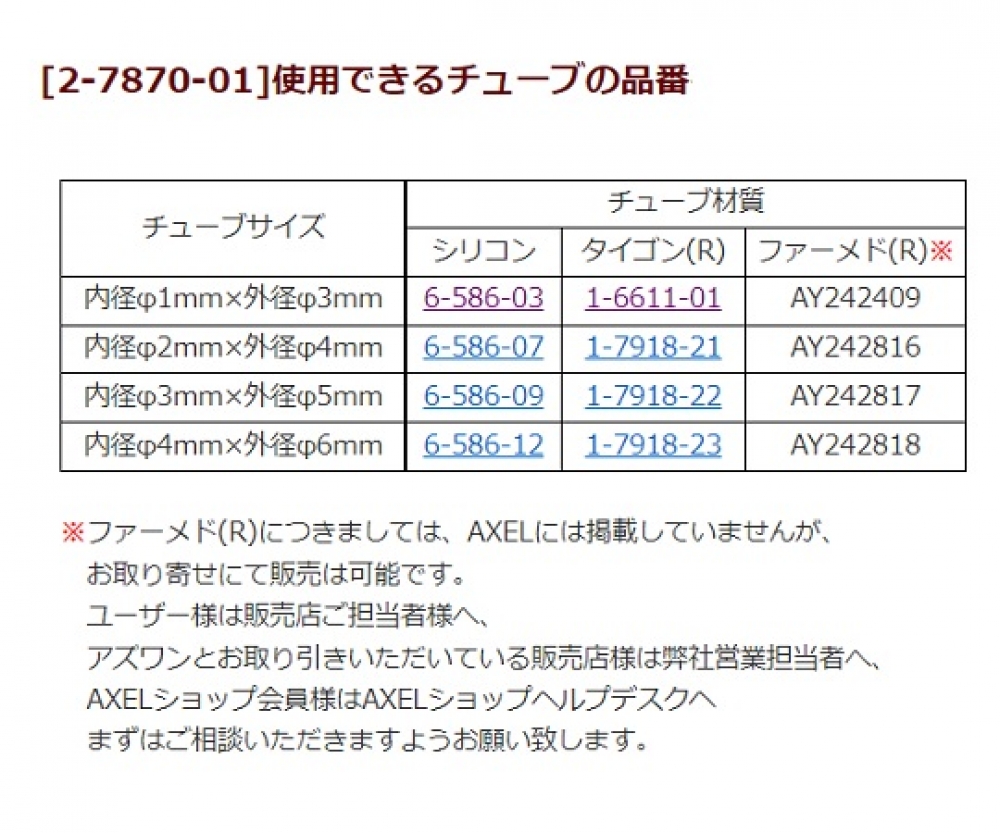

- Applicable tube diameter: Inner diameter φ1mm x Outer diameter φ3mm, Inner diameter φ2mm x Outer diameter φ4mm, Inner diameter φ3mm x Outer diameter φ5mm, Inner diameter φ4mm x Outer diameter φ6mm
- Compatible tube material: Silicone, Tygon (R), PharMed (R)
- Motor: Stepping motor
- With forward reverse switch function
- Body material: Steel coating
- Power supply: 100-240VAC 50/60Hz
- Plug shape: 2P plug (AC adapter)
- Size: 120 x 125 x 150mm
- Weight: 1.5kg

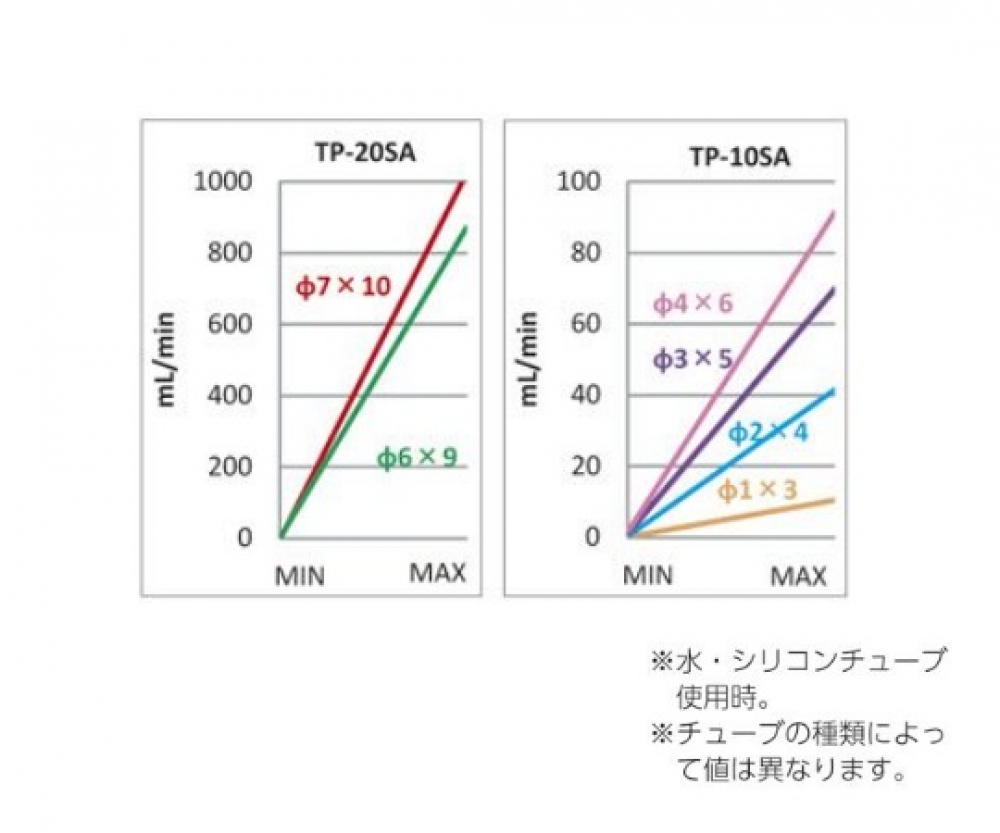

- Flow rate (when using water, Silicone tube): 0.1 - 100mL/min
- Rotation speed: 2 - 150rpm
- *Flow rate range is limited depending on tube diameter.
- Control Panel : English
- Plug: Type A (https://en.wikipedia.org/wiki/Mains_electricity_by_country)
-
RoHS3 (EU)2015/863 Certificates can be issued
[About RoHS]
Package size：180×190×140 mm 1.86 kg
