■ Flattened Original DURAN® Round-bottom Reaction Vessels : by SciLab Korea.

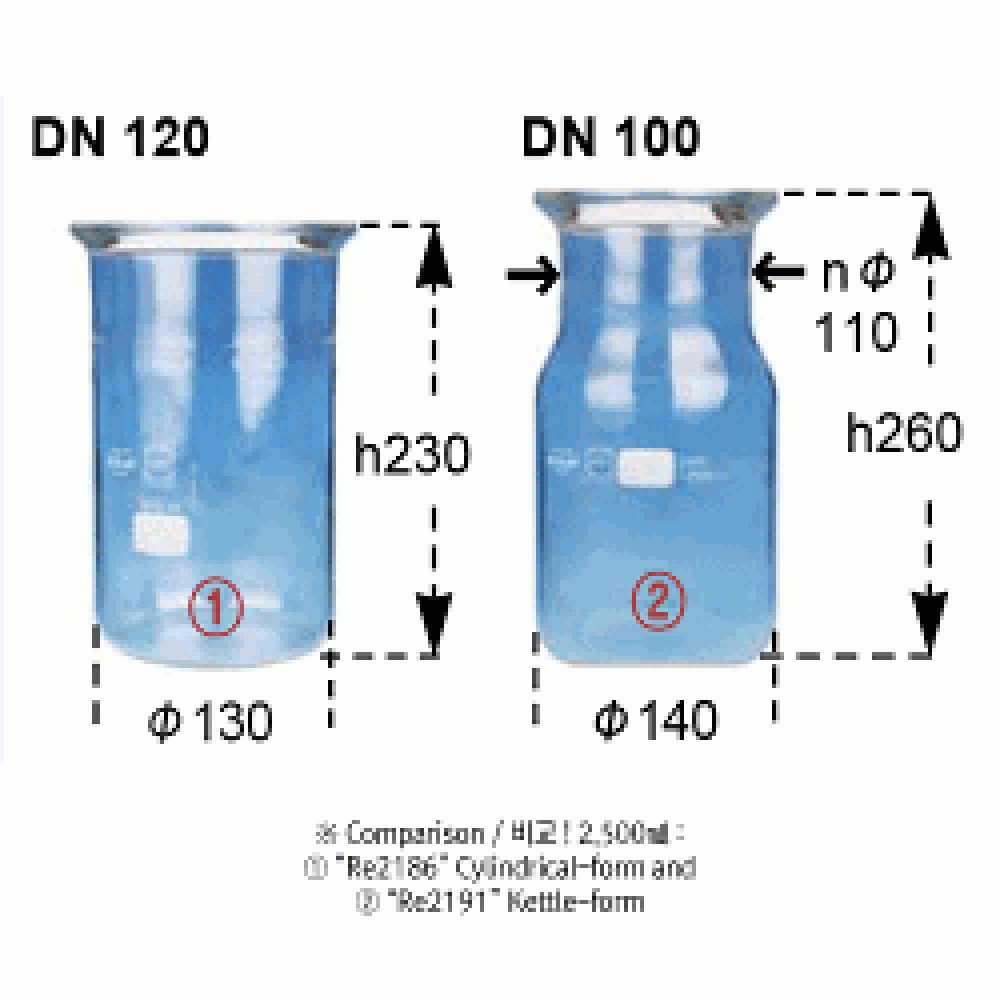

But, the DN 120 & DN 200-Vessels : Joining Original DURAN® Blank-DN flange 45°/ O-ring
and Vessel : by SciLab Korea
■ DURAN® Borosilicate Glass α3.3(Boro 3.3) : Chemical & Heat-Stability / Resistance.
Chemical-Resistant : (1) Class-A2 & S1 to Alkal & Acid and, (2) HGB-1 Hydrolytic Class.
Heat-Stability : (1) 560℃-Annealing point, (2) 825℃-Softening point,
(3) 1260℃-Melt Working point, and (4) 525℃-Transfomation Temp.

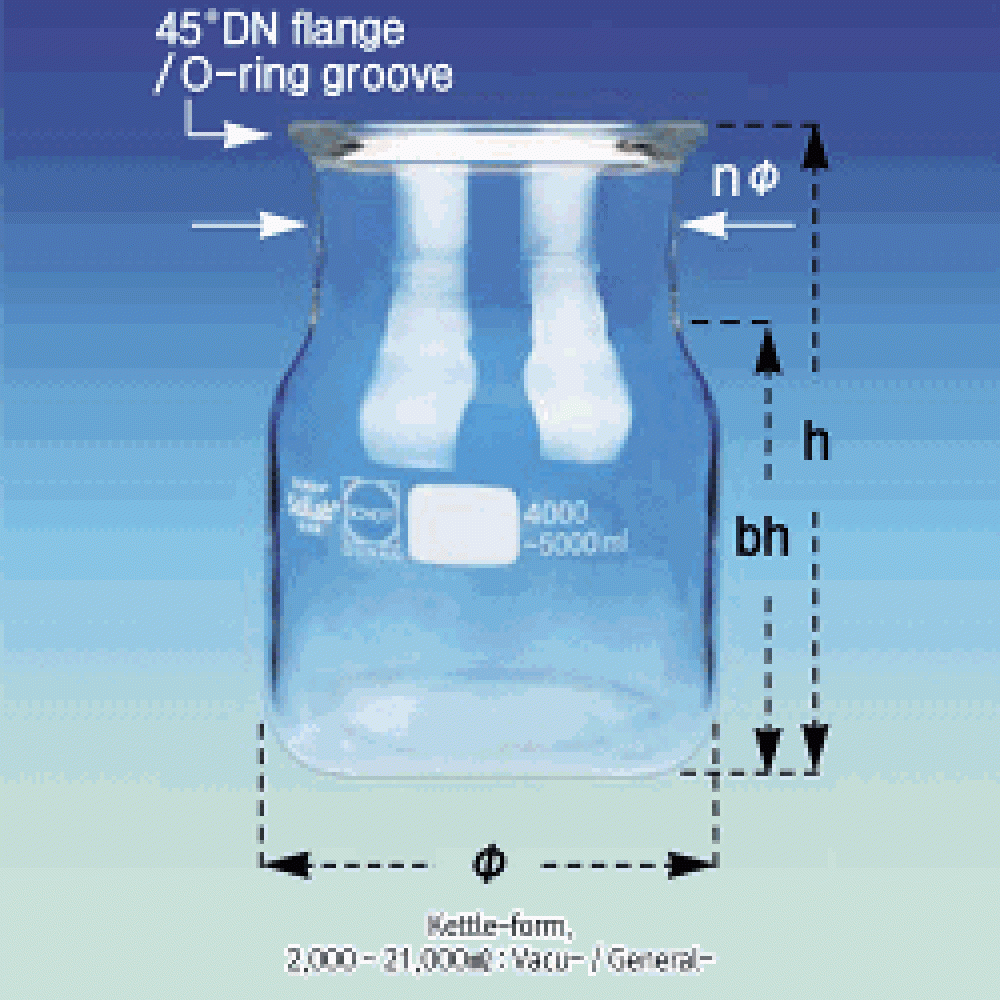

■ Ideal for Pressure & Vacuum-use : due to the Wall-Thickness and Geometry 45°DN Flange /
O-Ring Sealing with DURAN® 3-segment Stainless steel Quick-Release-Clamp.
Also Suitable for General Purpose
■ 45°DN-Standard Flanges : Perfact Compatibility with Lids & Flasks
① DN 60 Flange : idΦ60×odΦ100mm ② DN 100 Flange : idΦ100×odΦ138mm
③ DN 120 Flange : idΦ120×odΦ158mm ④ DN 150 Flange : idΦ150×odΦ184mm
⑤ DN 200 Flange : idΦ200×odΦ242mm
※ Note ! The “DN200” item(15 & 20 Lit) only : Non-Graduation !
* The “h” Vessel Height Approximately.
