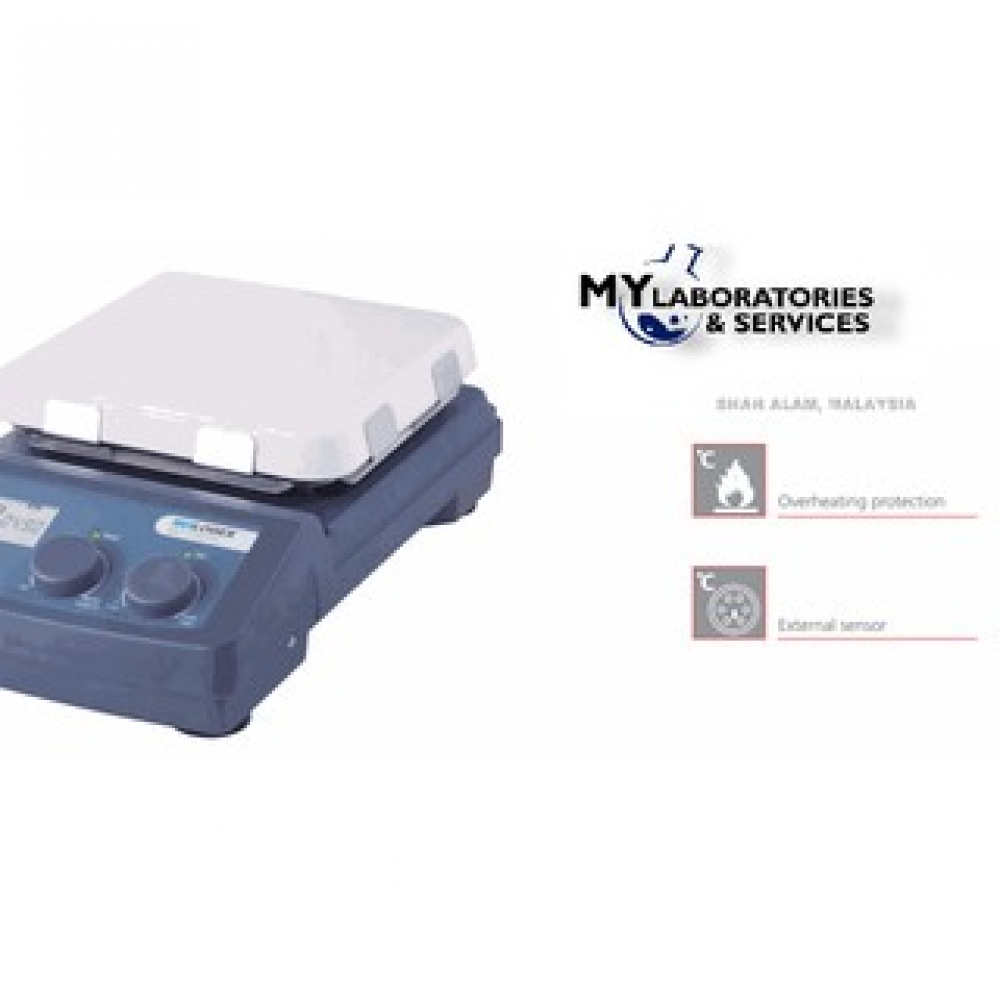

SCILOGEX Hot Plate Stirer SCI550 Pro (Malaysia) 7inch by 7 inch, 550 degree Celcius max, LCD Digital

Email: info@mylaboratories.com
+60350315720 (Office)
+60133051636 (Whatsapp)

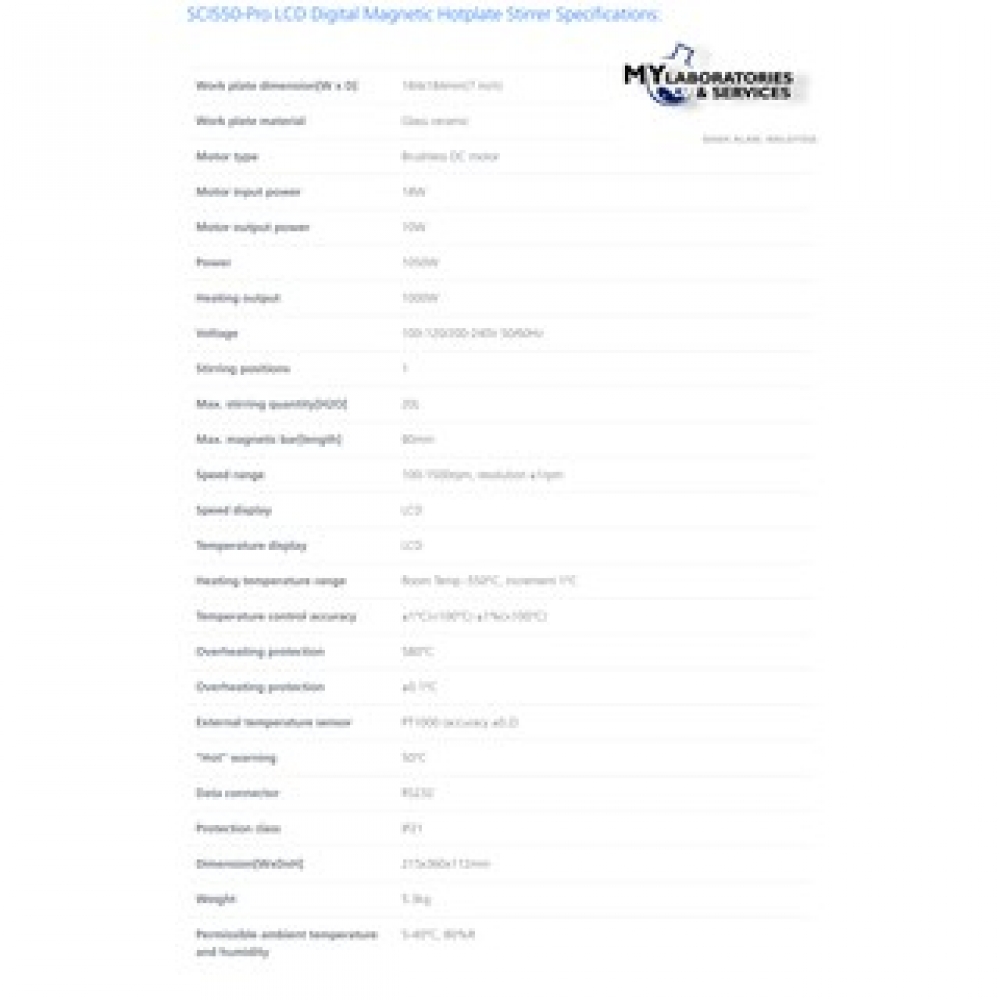

Work plate dimension[W x D] 184x184mm(7 inch)
Work plate material Glass ceramic
Motor type Brushless DC motor
Motor input power 18W
Motor output power 10W
Power 1050W
Heating output 1000W
Voltage 100-120/200-240V 50/60Hz
Stirring positions 1
Max. stirring quantity[H2O] 20L
Max. magnetic bar[length] 80mm
Speed range 100-1500rpm, resolution ±1rpm
Speed display LCD
Temperature display LCD
Heating temperature range Room Temp.-550°C, increment 1°C
Temperature control accuracy ±1°C(<100°C) ±1%(>100°C)
Overheating protection 580°C
Overheating protection ±0.1°C
External temperature sensor PT1000 (accuracy ±0.2)
"Hot" warning 50°C
Data connector RS232
Protection class IP21
Dimension[WxDxH] 215x360x112mm
Weight 5.3kg
Permissible ambient temperature and humidity 5-40°C, 80%R

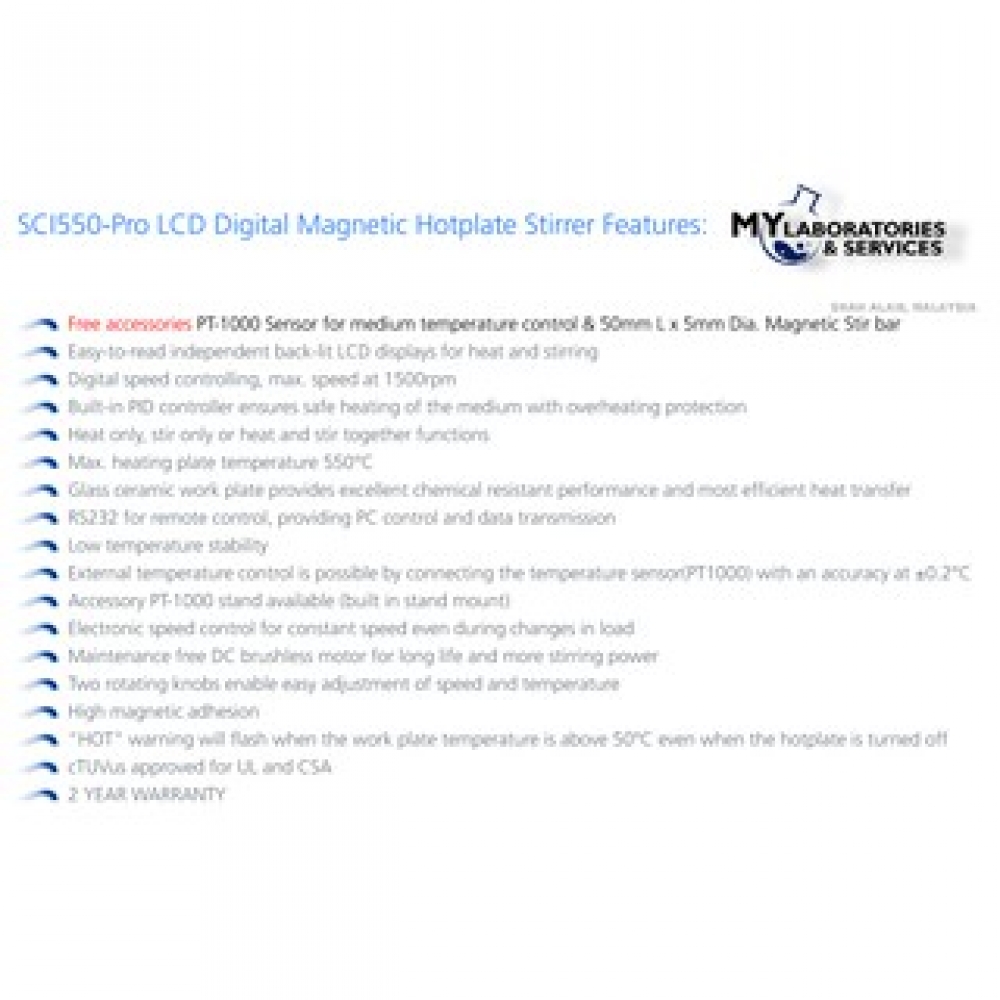

Free accessories PT-1000 Sensor for medium temperature control & 50mm L x 5mm Dia. Magnetic Stir bar
Easy-to-read independent back-lit LCD displays for heat and stirring
Digital speed controlling, max. speed at 1500rpm
Built-in PID controller ensures safe heating of the medium with overheating protection
Heat only, stir only or heat and stir together functions
Max. heating plate temperature 550°C
Glass ceramic work plate provides excellent chemical resistant performance and most efficient heat transfer
RS232 for remote control, providing PC control and data transmission
Low temperature stability
External temperature control is possible by connecting the temperature sensor(PT1000) with an accuracy at ±0.2°C
Accessory PT-1000 stand available (built in stand mount)
Electronic speed control for constant speed even during changes in load
Maintenance free DC brushless motor for long life and more stirring power
Two rotating knobs enable easy adjustment of speed and temperature
High magnetic adhesion
“HOT” warning will flash when the work plate temperature is above 50°C even when the hotplate is turned off
cTUVus approved for UL and CSA
2 YEARS WARRANTY

Packaging Size: 30cm X 30cm X 30cm
