Features
- High precision temperature control is possible by adopting microcomputer PID control.
- Timer function, program function, and data output by communication with a PC are possible.
- Optional external temperature sensor and alarm signal output.
- The safety device is equipped with a double lock mechanism with two independent circuits and a safety lamp.
- It heats up to the maximum temperature in about 30 minutes. The top plate temperature distribution width is 4℃ (when 200℃ is set)
Spec
- The top plate size:□170mm type
- Changes (overview):
- Display part:Improved visibility with negative backlight
- PC comm. interface:USB-B type
- Plug type:I type (for China) added
- Add safety function
- Max. temperature(℃):350
- Top plate material:Aluminum (ceramic coating)
- Frame size(mm):170×170
- Setting temperature range:Room temperature+10 to 350℃
- Temperature setting:Digital input

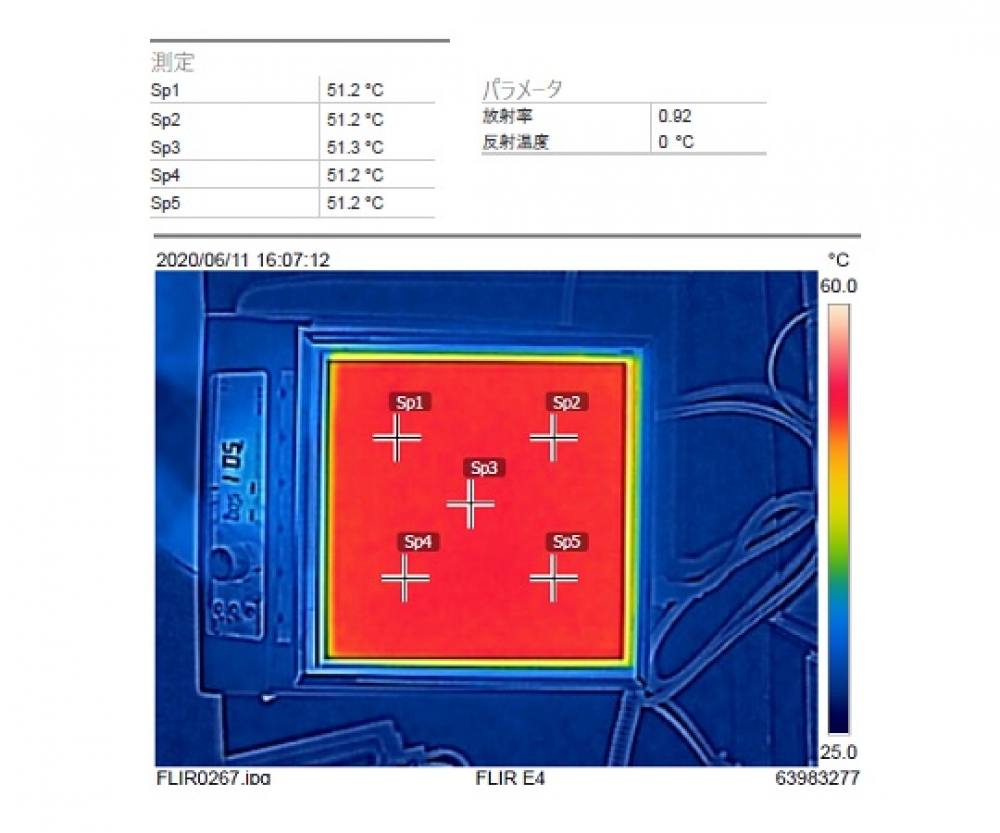

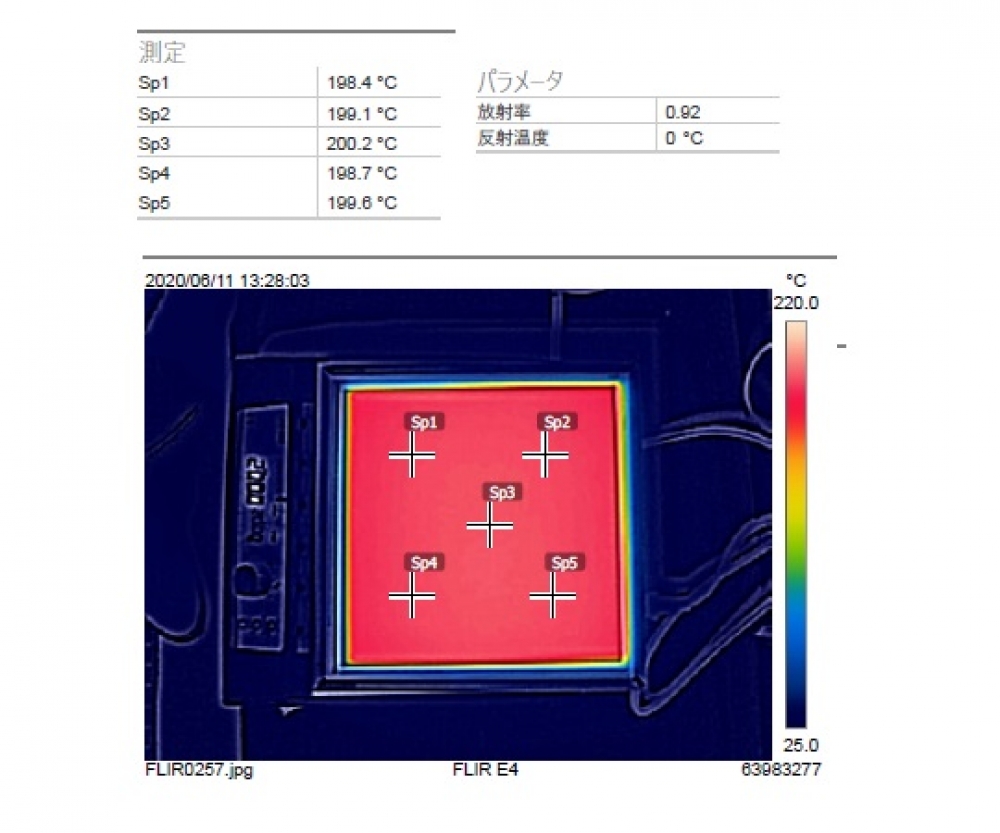

- Temperature distribution width:4℃ (This is a reference value when the temperature distribution width is 25℃ in the indoor environment.(No wind, no load, using internal sensor) and setting 200℃.)
- Temperature control method:Microcomputer PID control method, ON/OFF control method
- Temperature display method:LCD digital display (simultaneous display of setting/measurement temperature and heater output bar graph display)
- Internal temperature sensor:K thermocouple
- Heater capacity:680W
- Timer function:Setting range／1 min. to 99 hour 59 min. (per 1 min.)
- Program function:Number of steps / up to 8 steps, number of repeats / up to 9999 times
- Add-ons:Set value memory, key lock, alarm signal output, auto tuning, temperature correction
- Setting resolution:Temperature 0.1℃･hour 1 min.
- Communication cable:1-4594-26 USB cable
- Compatible OS:Windows(R)XP/SP3/Vista(R)/7/8/10(32･64bit)
- Safety device:Self-diagnosis function (upper and lower temperature abnormality detection ･ heater abnormality detection ･ sensor abnormality detection)･Abnormal heating prevention device (thermostat) ･ Overcurrent fuse
- Safety function(software):Upper and lower temperature alarm output + relay cutoff,LBA detection function, overheating prevention (internal sensor)
- The appearance size(mm):240×280×101
- Power supply:AC220V 50/60Hz
- Power cable length:Approx. 1.8m

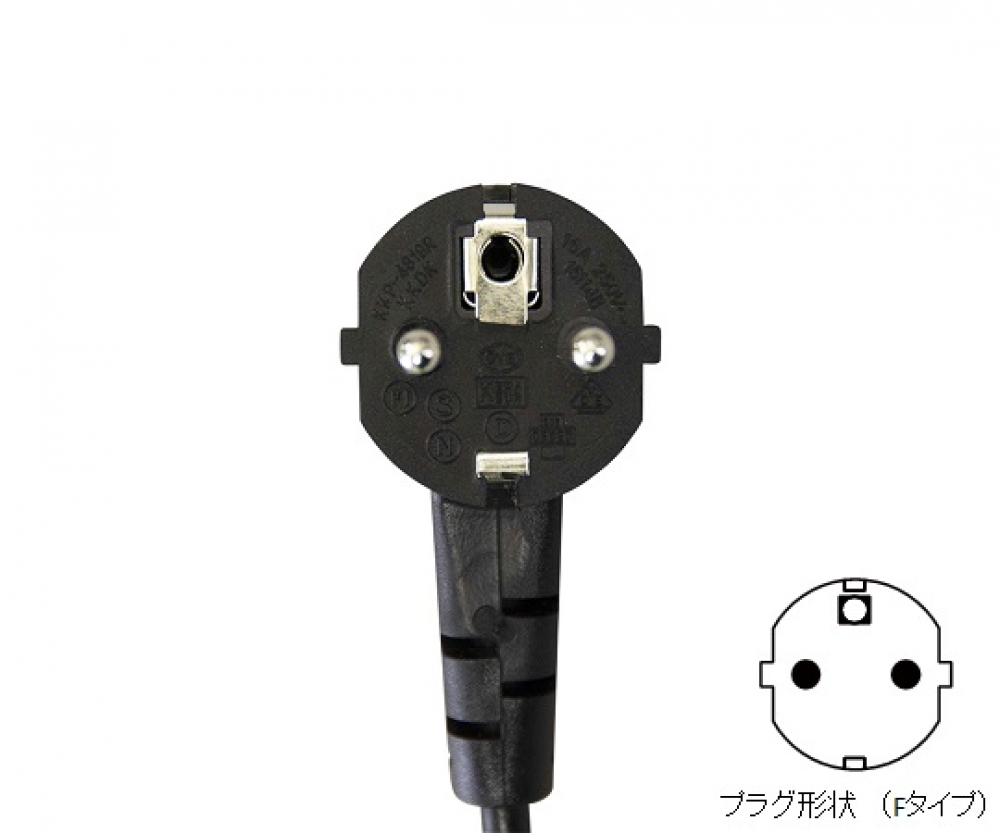

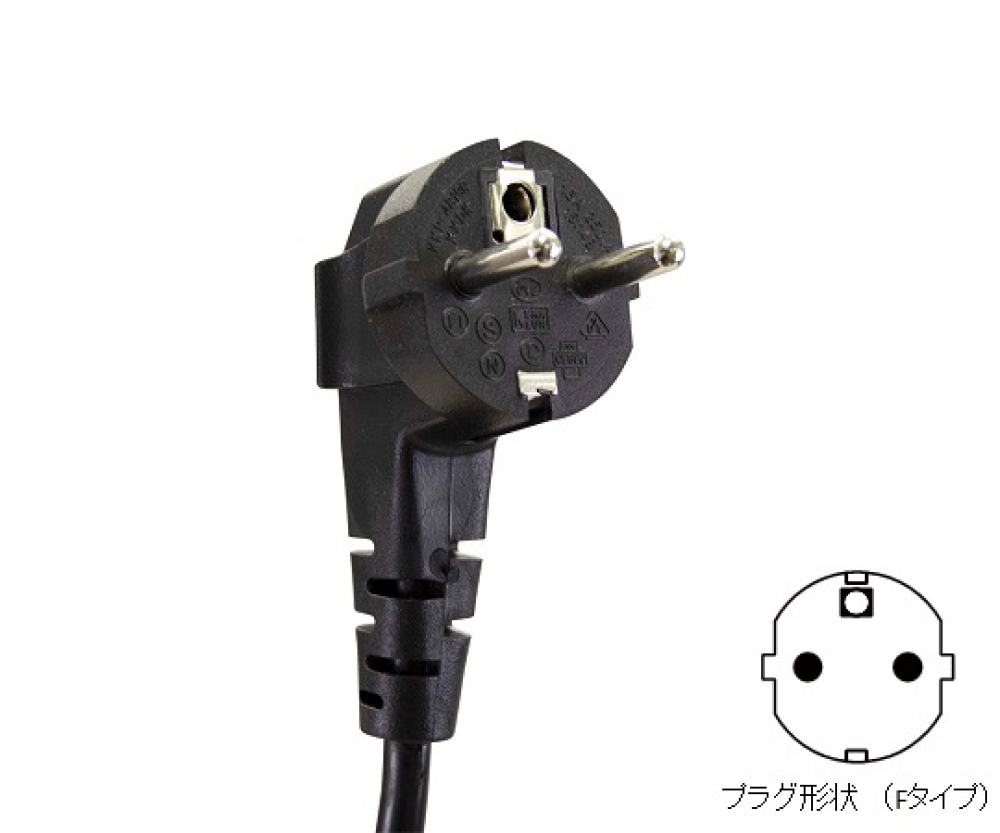

- Power plug:F type:Mainly for Chinese
- Control Panel : English
- Plug: Type F(https://en.wikipedia.org/wiki/Mains_electricity_by_country)
-
RoHS3 (EU)2015/863 Certificates can be issued
[About RoHS]
Package size：375×300×150 mm
