Features

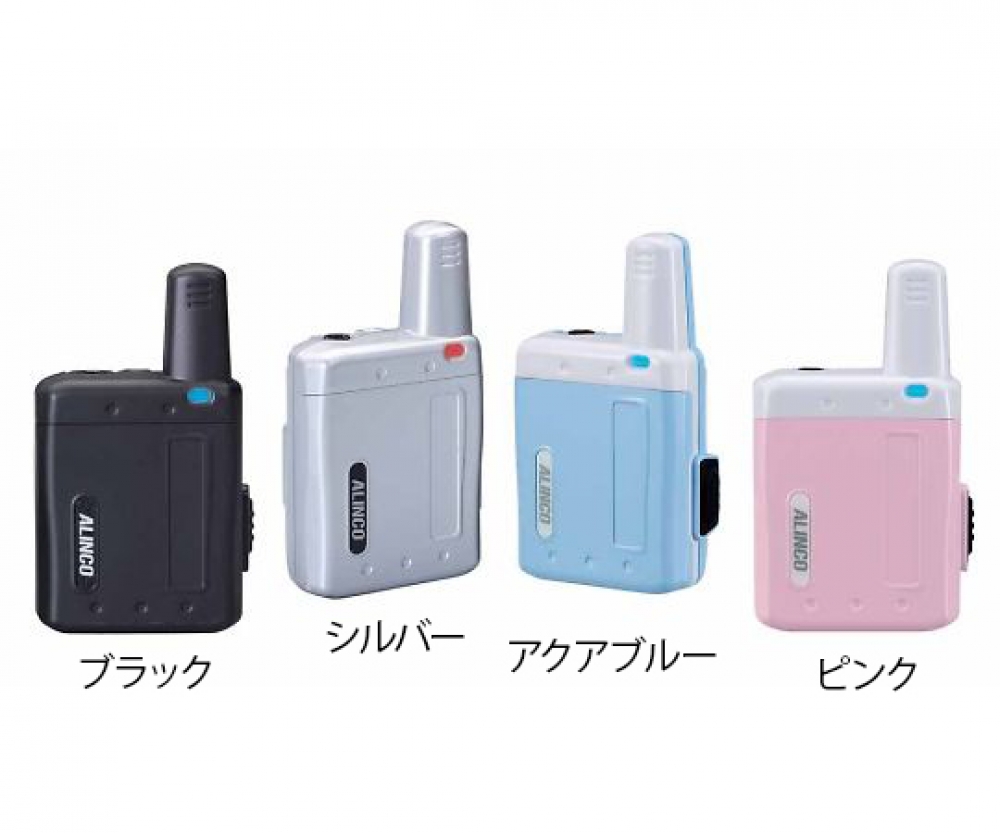

- The "Lapel Talk" series is a full-fledged special small transceiver that supports a total of 47 channels in the alternate call/alternate call relay mode and 50 tones for group talk.
- The DJ-PX2/PX2C, PX 3/31, and PX5 series compact transceivers can be used together with common channels, group numbers, and functions.
- The industry's smallest and lightest compact body.
- The wireless connection repeater [DJU3R] can greatly extend the communication distance.
- Setting is easy with smartphone application setting, air drone, and ACSH function.
- In addition, it is equipped with many useful functions.
- I need earphones and chargers sold separately.
Spec
- Dimensions : Width 41.6 x Height 52.6 x Depth 17.2 mm
- Antenna Length: 22 mm
- Frequency range: 421 to 440 MHz dedicated small transceiver frequency
- Number of Channels: Alternate/20 Channels, Relay/27 Channels
- Modulation method: F3E (FM)
- Communication type: simplex, semi-duplex
- Operating Temperature Range: -10 ° C to + 50 ° C (Charging 0 ° C to + 40 ° C)
- rated voltage 3.7 VDC (battery Only)
- current consumption
- Transmit: Approx. 70 mA
- Reception: rating output: approx. 80 mA, BS: approx. 20 mA
- Low Frequency Output: 50 mW (8 ohms)
- Reception sensitivity: 14 d μ or less (12 dB SINAD)
- Weight cookies : 50 g (Dedicated battery, Including Clip)
- Transmit power: 10 mW
- Standard usage time: about 25 hours (BS On)
- Recharging time: approx. 3 hours (Use EDC 207/208)
- Standard communication distance: Approximately 100 m in the urban area between Lapel Talk * Indoors will vary depending on the building style and the environment of furniture, fixtures and fittings.
Package size：115×95×45 mm 100 g
