Features

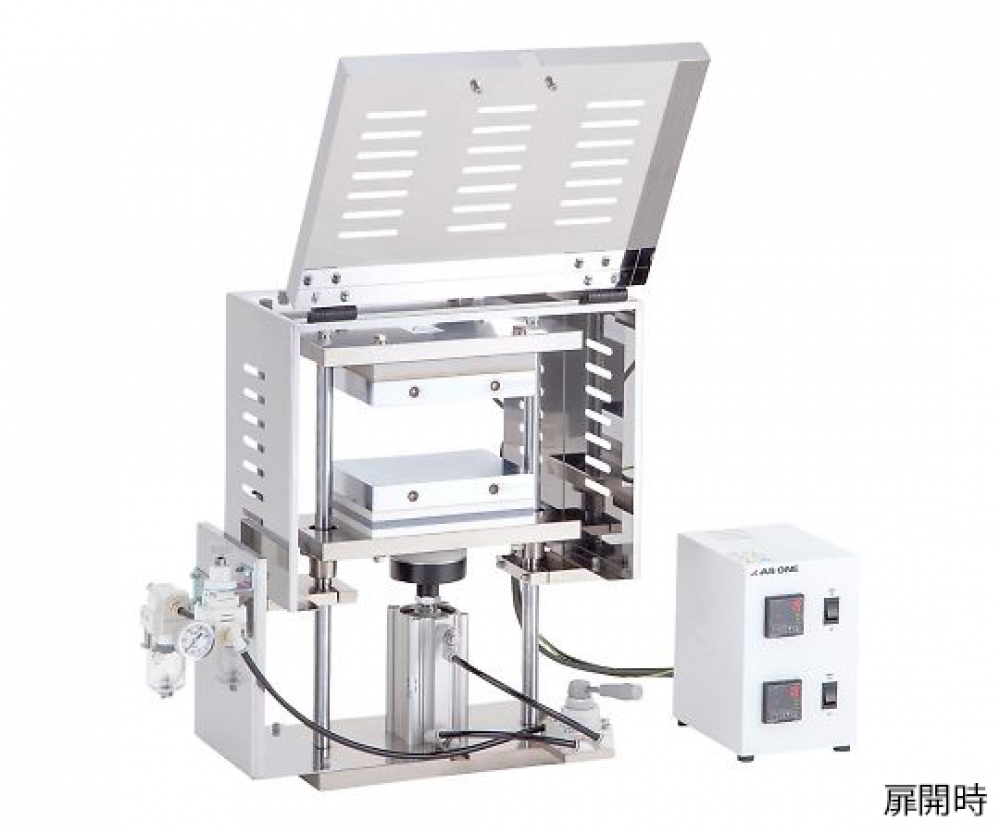

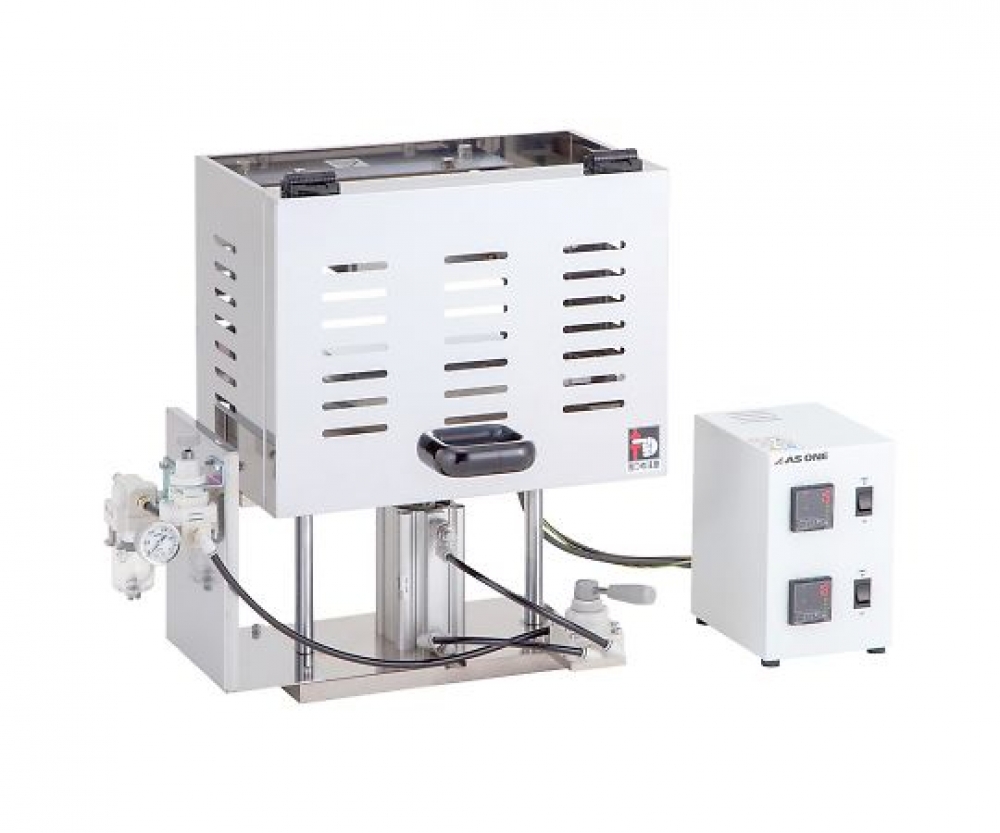

- It is a press machine that can continuously pressurize and hold the workpiece.
- Using compressed air from an air compressor, etc. (sold separately), the load is carried out with an air cylinder.
- The regulator can adjust the weight of 0.2 ~ 1.7 kN (approximately 20.4 ~ 173.6 kg).
- Can be held under pressure
Spec
- Size (mm): 725 x 370 x 560
- Weight (kg) : about 62
- Plate Size: 200 x 150 mm
- Press ability: 0.2 to 1.8 kN
- Stroke: 0 to 90 mm
- Heating Temperature: R.T. + 20 to 300 ° C

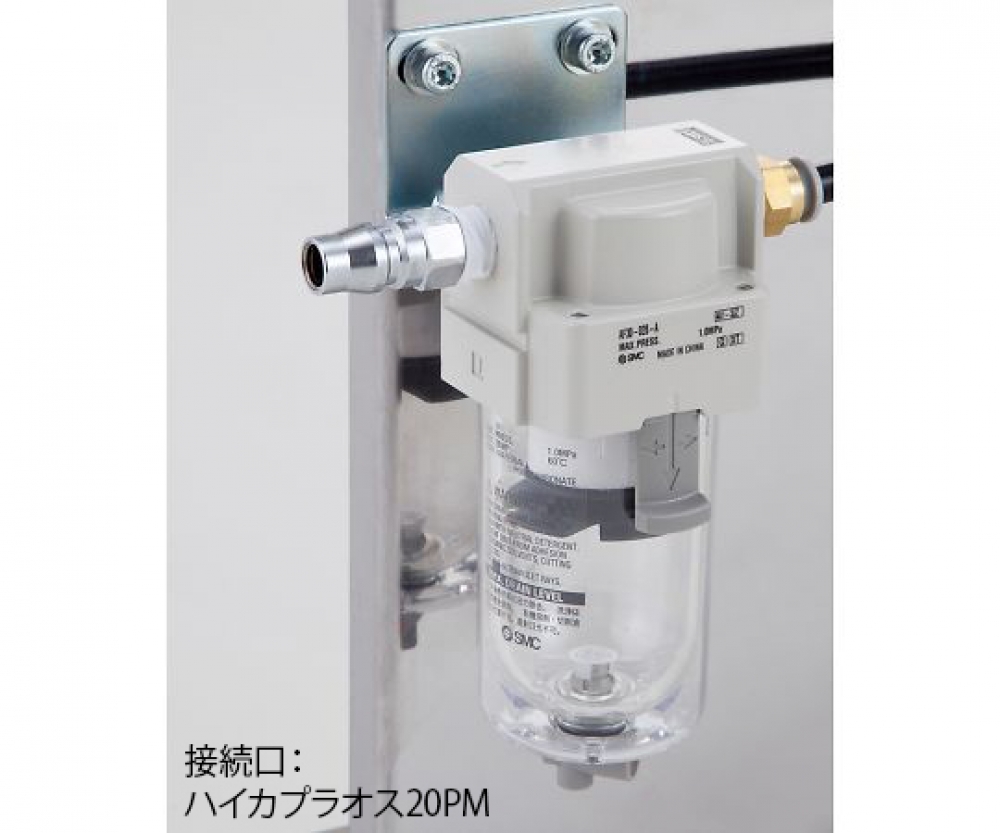

- connection port diameter : Haikapraos (Rc 1/4 female screw)
- power supply: AC100V 50/60 Hz
- *0.7 MPa or more (Up to 1.0 MPa) compressors or other pneumatic equipment are separately required.
- * Wooden packaging (Wooden frames, pallets, etc.) is used.
