Features
- Allows for hot pressing operations at higher temperature（Max. 400℃）compared with conventional press, ensuring wide range of applications such as heating compression molding.
- Capable of manufacturing plastic sheets and molding samples.
- This press is compatible with optional hot press dies（1-6002-11～・ P.211）.
- Driven by hydraulic pressure, it ensures easy weight application.
- Peak hold pressure gauge with 2-pointers allows you to check the applied pressure.
Spec
- Model number: H400-05
- Weighted (t): 0 - 5
- Size (mm): 635 x 490 x 535
- Weight (kg): Approx 73
- Hot plate size: 200 x 150mm
- Hot plate stroke: 0 - 90mm
- Heating temperature: R.T. +20 - 400℃
- Heater capacity: 1150W/heating plate x 2
- Temperature adjustment: PID type
- Pressure gauge: With left needle, analog display
- Power supply: AC200V 50/60Hz

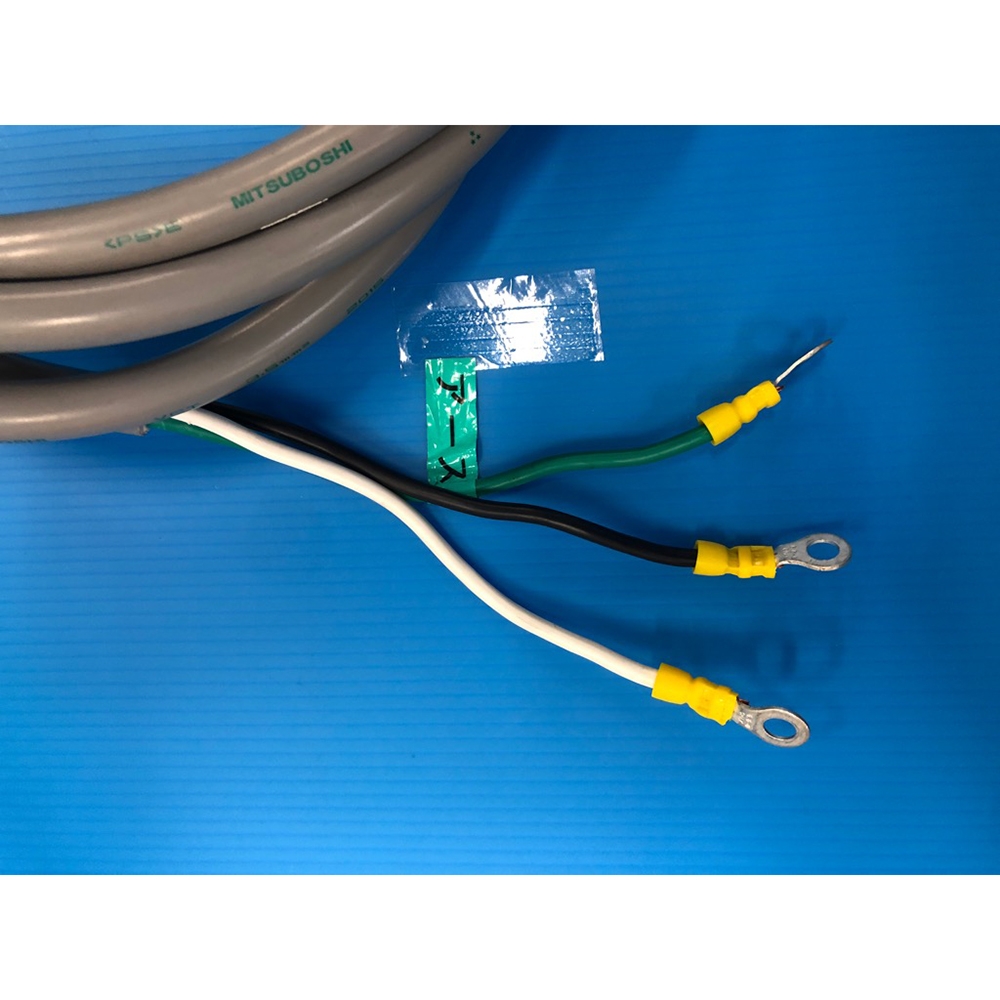

- Power cord length: 2.5m
- Plug shape: Without plug
- *it cannot hold pressure for long hours.
- *Pressure is recommended for use in 50% or more of the largest value.
*This product might require extra fees.
Package size：720×620×645 mm 88 kg
Courier from JAPAN is not inclusive
