Features
Brand : Fulfilled by As One Japan
Low noise, low vibration.
Because of belt-less and motor directly connected, it is easy to built-in to device.
Spec

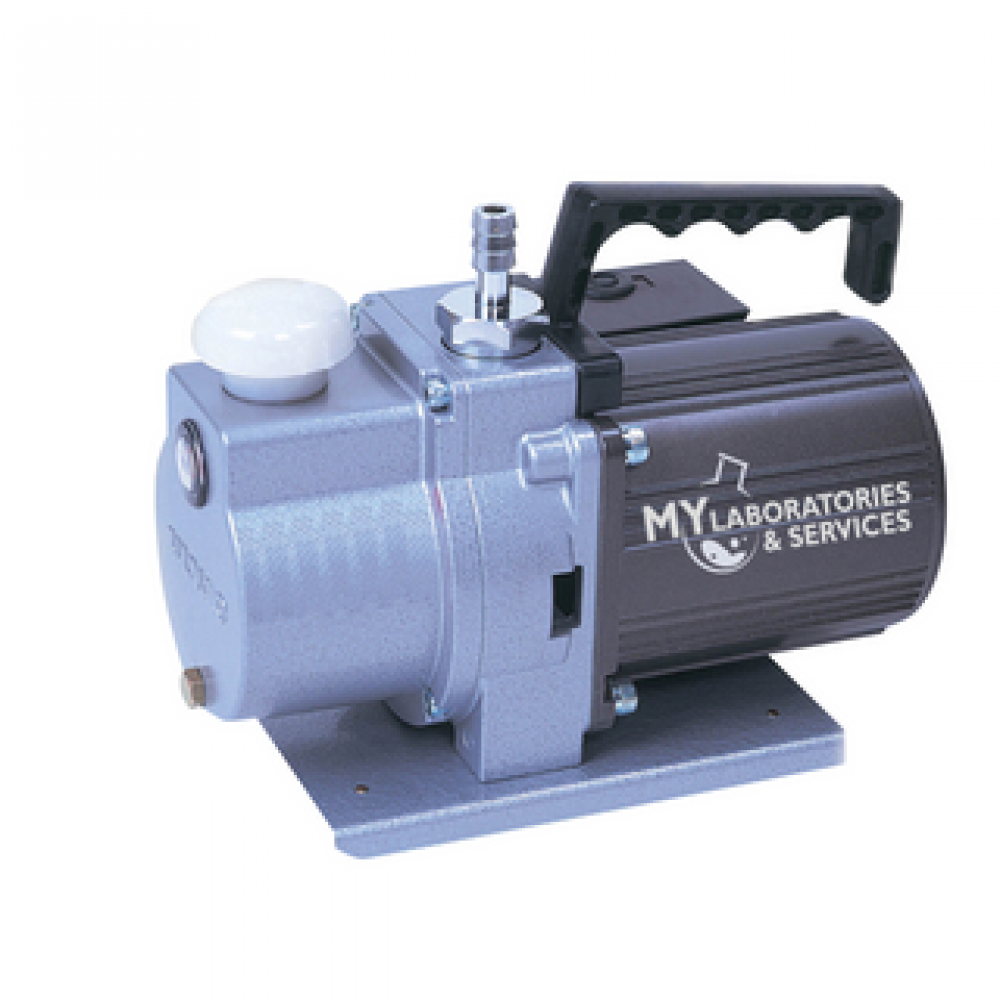

1.Model number: G-25SA and G-25SA 1φ220-230V
Type: 1 stage type
Exhaust speed (effective) (L/min): 20/24 (50/60Hz)
Achieving pressure (Pa): 9.3 (7 x 10^-2Torr)
Power (V): Single-phase 100
Inlet diameter (OD) x (ID) mm: 18 x 14 (M20 x P1)
Oil used: SMR-100 (included)
Oil volume: 230mL
Size: 156 x 284 x 199.5mm
Weight: 8.5kg
Small direct connection type
*When using an inlet pipe smaller than the inlet pipe inner diameter of the pump, The effective exhaust speed may decrease slightly.
Estimated delivery : 1-2 Weeks

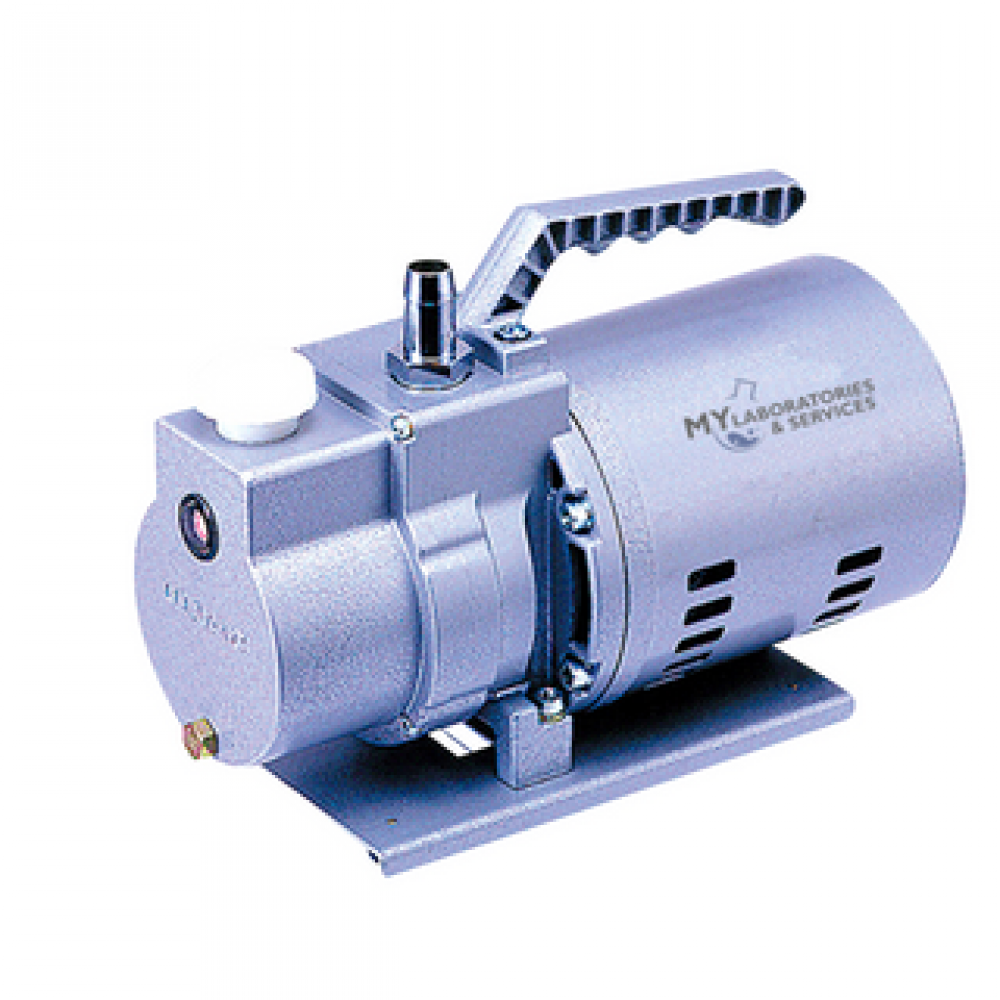

2.Model number: G-20DA and G-20DA 1φ220-230V
Type: 2 stage type
Exhaust speed (effective) (L/min): 20/24 (50/60Hz)
Achieving pressure (Pa): 1.3 x 10^-1 (1 x 10^-3^Torr)
Power (V): Single-phase 100
Inlet diameter (OD) x (ID) mm: 18 x 14 (M20 x P1)
Oil used: SMR-100 (included)
Oil volume: 180mL
Size: 56 x 295.5 x 199.5mm
Weight: 9kg
Small direct connection type
*When using an inlet pipe smaller than the inlet pipe inner diameter of the pump, The effective exhaust speed may decrease slightly.
3.Model number: G-5DA and G-5DA 1φ220V
Type: 2 stage type
Exhaust speed (effective) (L/min): 5/6 (50/60Hz)
Achieving pressure (Pa): 6.7
Power (V): Single-phase 100
Inlet diameter (OD) x (ID) mm: 12 x 6 (M20 x P1)
Oil used: SMR-100 (included)
Oil volume: 180mL
Size: 130 x 203 x 159.5mm
Weight: 5kg
Small direct connection type
*When using an inlet pipe smaller than the inlet pipe inner diameter of the pump, The effective exhaust speed may decrease slightly.
Packaging Size: 25cm X 42cm X 31cm
