Features
- Suitable for hot pressing of samples in a size as small as a tablet.

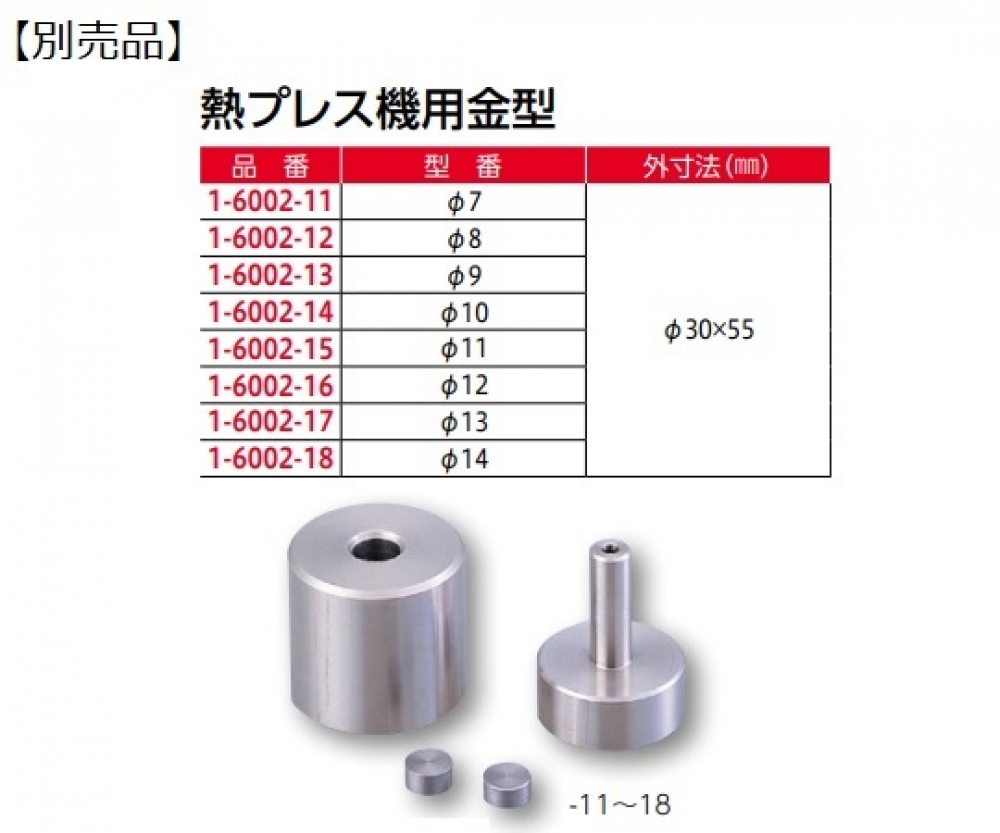

- This press can be used with a die（φ7～14*mm*・sold separately）.
- ＜HHP2-2D＞
- The upper and lower hot plates separately heat samples.
Spec
- Model number: HHP2-2D
- Size (mm): 150 x 280 x 465
- Weight (kg): About 14
- Up or down thermal plates Distance: 38 - 63mm (stroke: 25mm)
- Weighted: Maximum approx 40kg
- Heating temperature: R.T. +20 - 300℃
- Temperature settings: Digital
- Sensor: K class thermocouple
- Material: Press Body/cast Iron baking coating, Lever/cast iron (Chromium Plating), Temperature control/steel coating, Base/Phenol Resin, Top board/aluminum
- Heater: 160W x 2
- Power supply: 100VAC 50/60Hz
- Power cord length: 2.5m
- *Hot plate of up or down does not contact with each other.
- *Use with the optional gold type.
Package size：445×460×540 mm 16 kg
Courier from JAPAN is not inclusive
