Features

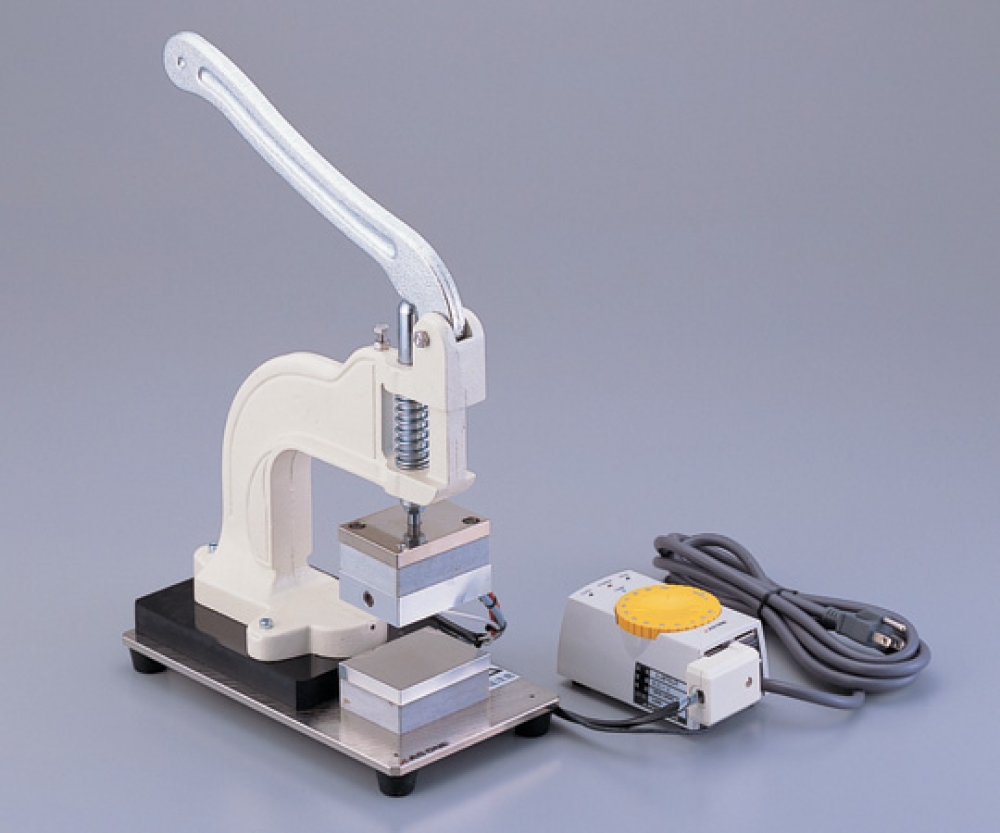

- Suitable for hot pressing of samples in a size as small as a tablet.

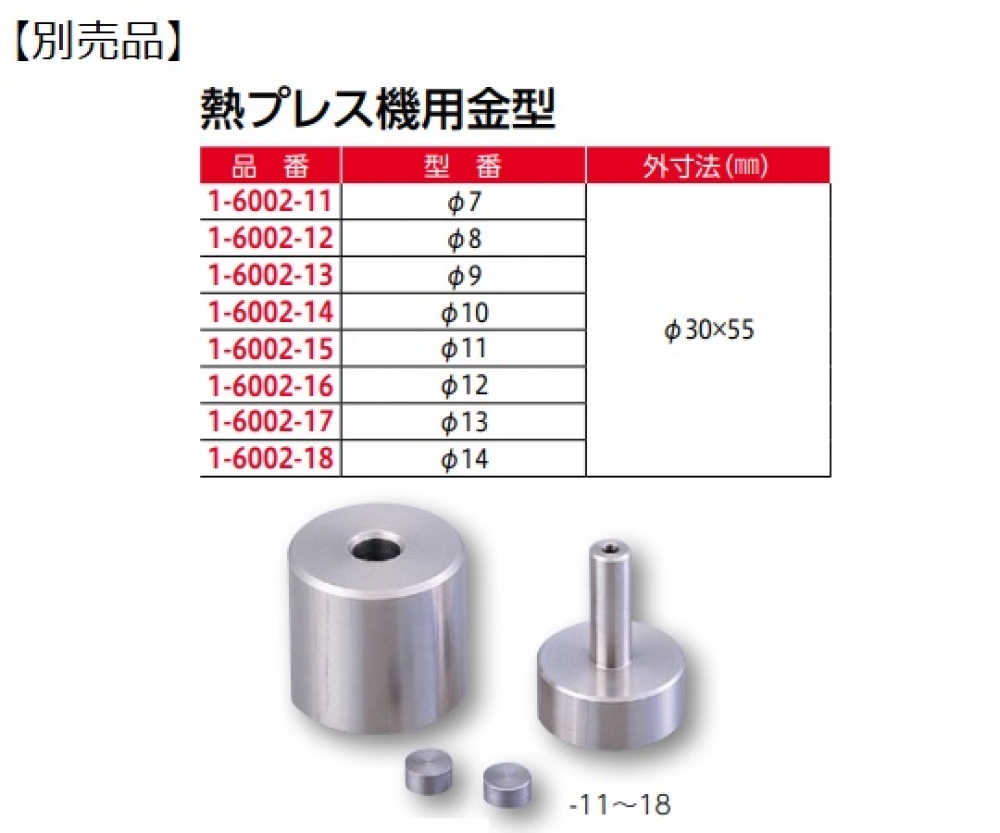

- This press can be used with a die（φ7～14*mm*・sold separately）.
- ＜HHP2-2D＞
- The upper and lower hot plates separately heat samples.
Spec
- Model number: HHP-1
- Size: 150 x 280 x 443mm
- Weight: Approx 9kg
- Up or down hot plate Distance: 38 - 63mm (stroke: 25m)
- Heating temperature: R.T. +20 - 200℃
- Temperature settings: Analog
- Sensor: K class thermocouple
- Material: Press Body/cast Iron baking coating, Lever/cast iron (Chromium Plating), Temperature control/steel coating, Base/Phenol Resin, Top board/aluminum
- Heater: 160W x 1
- Power supply: 100VAC 50/60Hz
- Power cord length: 2.5mm
Package size：220×325×505 mm 11.5 kg
Courier from JAPAN is not inclusive
